500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter

Name: 500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass 304 Industrial Water Filter
Brand: Kaiyuan
Price: 1 USD

Wholesale 500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter from china suppliers

Brand Name : Kaiyuan

Model Number : KYRO-500LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Name : 500LPH Ro System Well Water Filtration Plant

Production Capacity : 500LPH

Recovery Rate : 50% - 75%

Electrical Power : 380V 50Hz 3Phase (Customize available)

Tank Material : FRP / Stainless Steel / Carbon Steel

Control Valve : Automatic / Manual

Pipe fitting : SUS304 / SUS316L / U-PVC

Operating temperature : 5℃ - 39℃

Contact Now

500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter

RO (Reverse Osmosis) Water Purification Treatment : The capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food, drinking water. RO equipment is the most advance and energy saving in water treatment industry. Our company can supply all kinds of OR water purification appliance

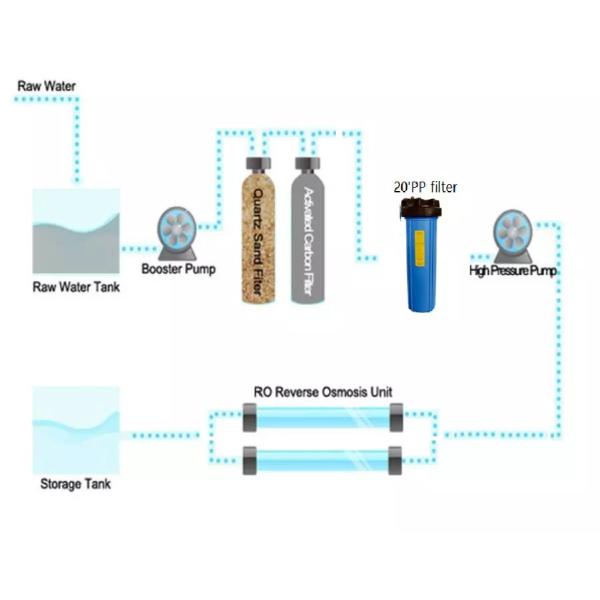

500lph reverse osmosis water system purifier ro plant designed with pre-treatment multimedia filters, it including sand filter, carbon filter,antisludging agent and security filter, which can remove big suspending particles, reverse osmosis unit can filtrate over 99% dissolved solid,It is the most precison filter process.

500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter

1---Quartz sand filter

Function:Mainly remove the mud, suspended solids and large particles in the tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Filter material: Fine quartz sand

Filter material Size: 1-2.5mm and 2.5-4.5mm

2---Active carbon filter

Function:mainly remove organic substances, residual chlorine and odor in tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Fine active carbon

Filter material Size: 20-40mesh

3---Resin softening

Function:mainly remove the calcium and magnesium in tap water, reduce the hardness of water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Resin 0.315-1.25mm

4--Security filter:

Function: Further filtration, to avoid quartz entry into RO to break the membrane

Shell Material: SUS304

Cartridge material: Spray-fusing polypropylene 5um 20’

Cartridge Qty: 5pcs

5---RO membrane:

Function: the core part of pure water equipment, the production of high-purity water.

Parameters:

Model: ULP31-4040

Flow rate: ≥7.2m3/h(25°C)

Desalination rate %:99.4%

Max Inlet Water Temperature: 45 °C

Max Working Pressure:600pai(4.14Mpa)

Effective membrane area ft2(m2) :85(7.9)

Operation: automatic control, automatic flush

Membrane material: aromatic polyamide composite membrane

Membrane housing material: SUS 304

6--- High-pressure pump:

Function: provide enough pressure for reverse osmosis system

Model:CVF2-13T 1.5kw

Material: SUS304

Flow: 3.2m3/h

Lift: 60m

7---Anti-sludging agent dosing device

Function: According to a certain proportion of adding reverse osmosis antiscalant dosing, prevent reverse osmosis caused by dirt plugging in the long-running surface node membrane element, It can effectively disperse fouling. And prevent the deposition of iron and aluminum oxide

500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter

The normal package of industrial water purifier is wooden box ,we will use pe film for packing or pack it according to customers special request.

500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter

Product Tag: RO Water Treatment System, Brackish Water System

Any insterest pls contact: tel/ whatsapp/wechat: +86 13660858152
